Mini Machine Anchor Drives

Developed in conjunction with leading screw anchor / helical pile installers around the world, Digga brings you the only true anchor drives available - designed and manufactured inhouse specifically for the rigours of application. The host machine operates in its most efficient HP range to minimize wear and tear, optimizing performance and ensuring highest returns.

Mini Loader & Walk-Behind Anchor Drives

The MM10K is the ultimate Screw Anchor when it comes to performance, quality and cost effectiveness for Mini Loaders & Walk-Behind Machines. With over 30 years of design and development Digga has produced the highest quality range of Screw Anchor Drives on the market today.

Mount Specs Mini Machine
Height 24"
Width 24.21"
Weight with Standard Mount 291 lbs
Weight with Extended Boom 435 lbs
Digga North America - Hand Held Screw Anchor Drive

Digga North America - Hand Held Screw Anchor Drive

Mini Excavators

The MM10K is the ultimate Screw Anchor when it comes to performance, quality and cost effectiveness for Mini Excavators. With over 30 years of design and development Digga has produced the highest quality range of Screw Anchor Drives on the market today.

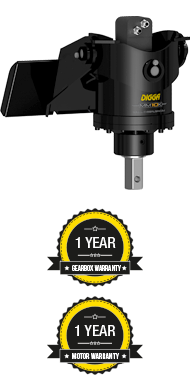

Mount Specs Mini Excavator
Height 26.4"
Width 16.4"
Weight 380 lbs*

*Weight may vary depending on machine mount

Features

  • Compact high torque Digga manufactured gearbox
  • Lightweight and compact for ease of movement
    in confined spaces
  • High efficiency Danfoss/Digga geroler hydraulic motor
  • 1 year gearbox & 1year motor warranty*

Suits Stand-on Mini Machines with a minimum ROC of 600lbs & Mini Excavators up to 3.5T


Specs MM-10K
Theoretical
Torque 		10,478 ft-lbs @ 3000 psi
Expected Torque 8,040 FT-LBS @ 3000 PSI (77% efficiency)
Max Pressure 3000 psi @ 18.5 gpm
Max flow 18.5 gpm @ 3000 psi
Max horse power 33
Pressure Relief
Valve		 N/A
Std Output Shaft 2.5" Hex-Short
HALO Optional
Weight - Gearbox Only 140 lbs
Weight - with mount 313-458 lbs depending on mount option
Digga North America - Hand Held Screw Anchor Drive
Inquire now for your nearest dealer or for product inquiries
