A FASTER AUGER FOR MACHINES BETWEEN 15-30T
Digga’s high powered augers operate at a maximum pressure 5,000psi, providing you with faster speed and performance - Without detuning your machine.

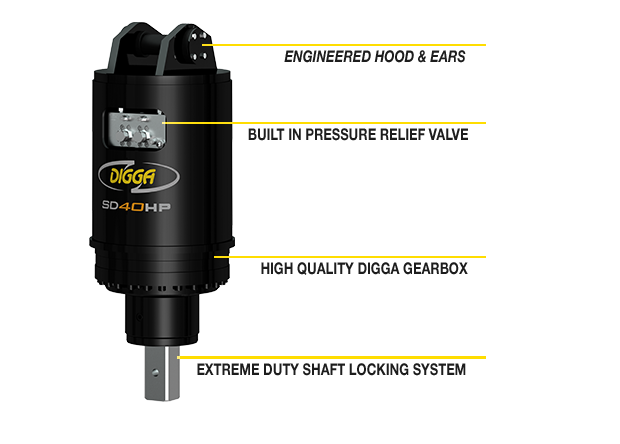

Compact high quality gearbox made by Digga
Gears are precision machined by Digga from high grade quality alloy steel, providing you with a highly efficient pressurized gearbox which ensures no leaks and minimal maintenance.
Built-in PRV (pressure relief valve) as standard
ensures max volumetric effeciency for consistent & efficient pile installation throughout the working day.
Engineered hood and ears
For maximum strength. Specifically designed for heavy duty drilling applications.
Extreme heavy duty shaft locking system
The Digga 2 piece shaft, is a separate component to the planetary carrier, isolating the planetary gears fromthe pushing, pulling & bending forces generated by the machine.
| Specs | SD45HPS | SD50HPS | SD70HPS | SD80HPS | SD95HPS |
| Max Torque (ft-lbs) | 33,654 | 39,463 | 51,634 | 62,638 | 69,244 |
| Max Speed (RPM) | 46 | 39 | 30 | 25 | 22 |
| Max Flow (Gpm) | 100 GPM @ 3,500 PSI | ||||
| Max Pressure - Do Not Exceed | 5,000 PSI @70 GPM | ||||
| Max Horse Power | 201 | 201 | 201 | 201 | 201 |
| Motor Type | Radial Piston | Radial Piston | Radial Piston | Radial Piston | Radial Piston |
| Pressure Relief Valve | Included | Included | Included | Included | Included |
| Energy Control Valve | Not Included | Not Included | Not Included | Not Included | Not Included |
| Standard Output Shaft | 100mm Square |
100mm Square |
100mm Square |
100mm Square |
100mm Square |
| Halo | Optional | Optional | Optional | Optional | Optional |
| Recommended Auger | RC11 / DR11 | RC11 / DR11 | RC11 / DR11 | RC11 / DR11 | RC11 / DR11 |
| Max auger diameter (clay / shale)* |
60" | 60" | 60" | 60" | 60" |
| Max auger diameter (earth)* | 79" | 79" | 79" | 79" | 79" |
| Weight (lbs) | 1,843 | 1,843 | 1,843 | 1,843 | 1,843 |
| Overall length (in) | 50.9" | 50.9" | 50.9" | 50.9" | 50.9" |
| Diameter (in) | 23.6" | 23.6" | 23.6" | 23.6" | 23.6" |
